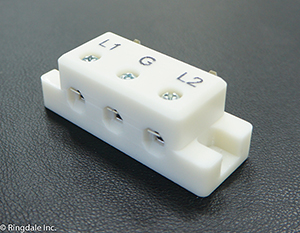

4000 Series Terminal Block - 3 Way - 8 ga to 20 ga

TERMINAL BLOCK 20 ga to 8 ga WIRE TO 3/16" SPADE 3-Position 600V - 10A


The terminal block series is ideal for field installable Electrical Equipment and devices running off a single phase or between two phases. Such as Street Lights that require connection to incoming wire gauges from #12 up to #8 wires converting to spade connectors for easy connection during the manufacturing process of the devices.

Type: Terminal Block, Barrier Style
Number of Rows Single Row
Screw Terminal TypeScrew Clamp
Base Style:Wing Mount
Block Length: in: 3" ( 76 mm )
Block Width: in: 1.38" ( 35 mm )
Block Height: in: 1.5" ( 38 mm )
Manufacturer Series:4000 Series


Part No: 34-40001003

Caution! All specifications published herein are subject to change without notice. See website for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
