SCT-2000 Energy Monitoring Current Sensors

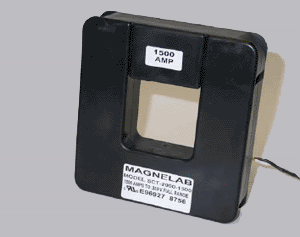

Current Transformer with 2.00 inch opening measures AC current passing through the center


This current transformer is suitable for all devices and applications requiring output of 0.333 Volt at a 100% current. In the 2.00 inch series all devices have a burden resistor except the 0-1500A device which does not have a burden resistor and its output voltage is clamped to 22 Volts. Dimensions


Part No. Rated Current (Amps) Dimension (inches)
A B C D E
00-11-2000-0000*0-1500
00-11-2000-0100100
00-11-2000-0200200
00-11-2000-0300300
00-11-2000-0600600
00-11-2000-0800800
00-11-2000-10001000
00-11-2000-12001200
00-11-2000-15001500
*Products with -0000 have no burden resistor.
4.75 5.00 1.20 2.00 2.00

The following table shows the output voltage versus the percentage of 'Rated Current' (see table above).

Output vs Percentage of Rated Current
