Energy Monitoring Current Sensors (Current Transformer) - 00-11-1250-0000

	United States \| My Account

» Products «	Solutions	Support	My Account	Resellers	News	About Us	Contact Us

Price:

€ 106.98
UK£ 66.86
US$ 115.00

Key Features:

UL Recognized
Precision burden resistor
Epoxy encapsulated housing

Technical Specifications:

Output	0.333 Volts at rated current
Accuracy	1%
Phase Angle	<2° for current >70Amps.
Rated Accuracy	at 10% to 130%
Leads	8 ft, twisted pair, 22 AWG
Inner Diameter	1.25 inch sq.

SCT-1250 Energy Monitoring Current Sensors

Current Transformer with 1.25 inch opening measures AC current passing through the center

This current transformer is suitable for all devices and applications requiring output of 0.333 Volt at a 100% current. In the 1.00 inch series all devices have a burden resistor except the 0-200A device which does not have a burden resistor and its output voltage is clamped to 22 Volts.

Part No.

Rated Current (Amps)

Dimension (inches)

00-11-1250-0000*	0-600
00-11-1250-0050	50
00-11-1250-0070	70
00-11-1250-0100	100
00-11-1250-0150	150
00-11-1250-0200	200
00-11-1250-0250	250
00-11-1250-0300	300
00-11-1250-0400	400
00-11-1250-0600	600
*Products with -0000 have no burden resistor.

3.25

3.35

1.00

1.25

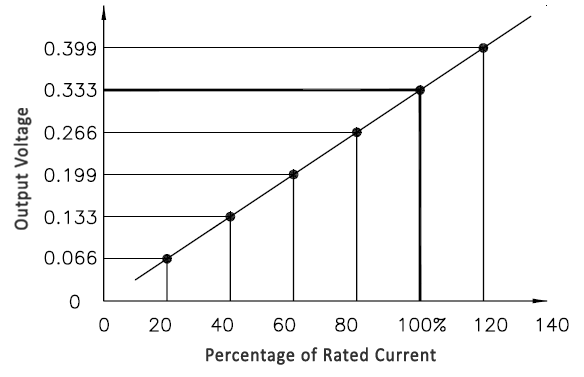

The following table shows the output voltage versus the percentage of 'Rated Current' (see table above).

Output vs Percentage of Rated Current

Printable View

Make an inquiry

email a colleague

Back

Select your datasheet language:
Deutsch	English	Francais	Portugues	Espanol
